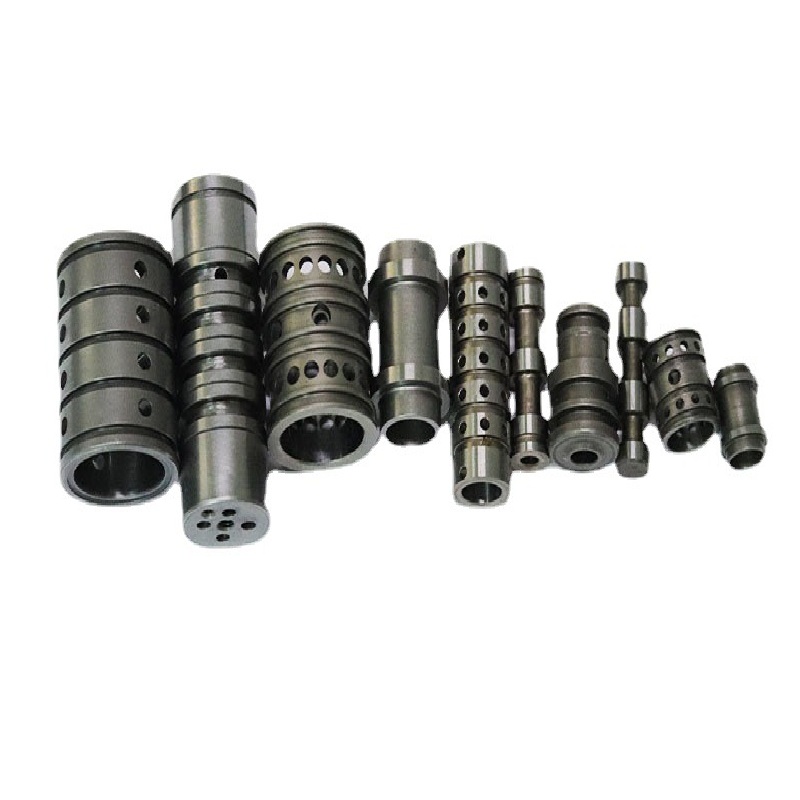

Custom Hydraulic Counterbalance Valve Core | Non-Standard Valve Sleeve & Spool to Drawing

High-Rigidity Fluid Control & Superior Wear Resistance

• Flawless Counterbalance Modulation: Specifically engineered to regulate pressure and prevent un-controlled load drops in heavy-duty hydraulic lines, demanding high geometric tracking and zero-drift seating.
• Premium Hardened Metallurgy: Available in high-grade alloy and stainless steels (SUS440C, SKD11, SUJ2, 40Cr) vacuum heat-treated to ensure maximum structural core toughness and cross-sectional stability under intense multi-ton clamping pressures.
• Mirror-Ground Friction Surfaces: Piston rods and valve needles undergo meticulous cylindrical micro-grinding and honing to optimize oil clearance fits, eliminating mechanical binding or stick-slip anomalies during fast-cycling flow adjustment.

Customization & Non-Standard OEM Expertise

• Tailored to Your Drawings & Samples: We offer comprehensive OEM/ODM manufacturing flexibility, delivering high-precision valve cores, bodies, sleeves, and rods processed exactly to your provided 2D drawings (PDF/DXF), 3D CAD files (STEP/IGS), or physical reference parts.
• Specialized Internal Flow Grids: We excel at processing complex internal fluid distribution notches, non-standard oil pass grooves, custom chamfered needles, and tight-tolerance outer shoulders that standard catalog stocks do not support.
• Rapid Factory Response: Our highly streamlined multi-axis machine setups guarantee fast manufacturing lead times and highly responsive shipping schedules to eliminate toolroom or equipment line downtime.

Key Technical Specifications

• Supported Valve Components: Valve cores (spools), piston rods, valve bodies, valve sleeves, valve needles, counterbalance valve internals, and proportional control sub-assemblies.
• Reference Size Specification: 36.61*19.05*175.3 (Fully customizable lengths, diameters, and stepped variables to fit your exact manifold block).
• Material Grade Options: SUS440C Stainless Steel, SKD11 Tool Steel, SUJ2 Bearing Steel, 40Cr Alloy Steel.
• Surface Finishes Available: Standard micro-polished, hard chrome plating, nitriding, or custom DLC (Diamond-Like Carbon) coating for extreme wear applications.

Primary Application Fields

• Mobile & Construction Machinery: Critical load-holding counterbalance systems for excavator boom cylinders, mobile cranes, and aerial work platforms.
• Industrial Press & Machine Tools: High-precision proportional control networks for plastic injection molding machinery, hydraulic stamping presses, and die-casting units.
• Marine & Offshore Controls: Heavy-duty, corrosion-resistant valve internals for winches, steering gears, and automated subsea fluid manifolds.

We are committed to helping industrial buyers, fluid power workshop managers, and emerging equipment designers grow by offering flexible purchasing options with absolutely no minimum order quantity (MOQ) pressures. Whether you require a single high-precision functional prototype core for engineering validation or a low-volume custom production run to refresh your specialized components, we deliver premium results with minimal stock burden. Contact our engineering team today to upload your drawings or mail in your physical sample to get started.
