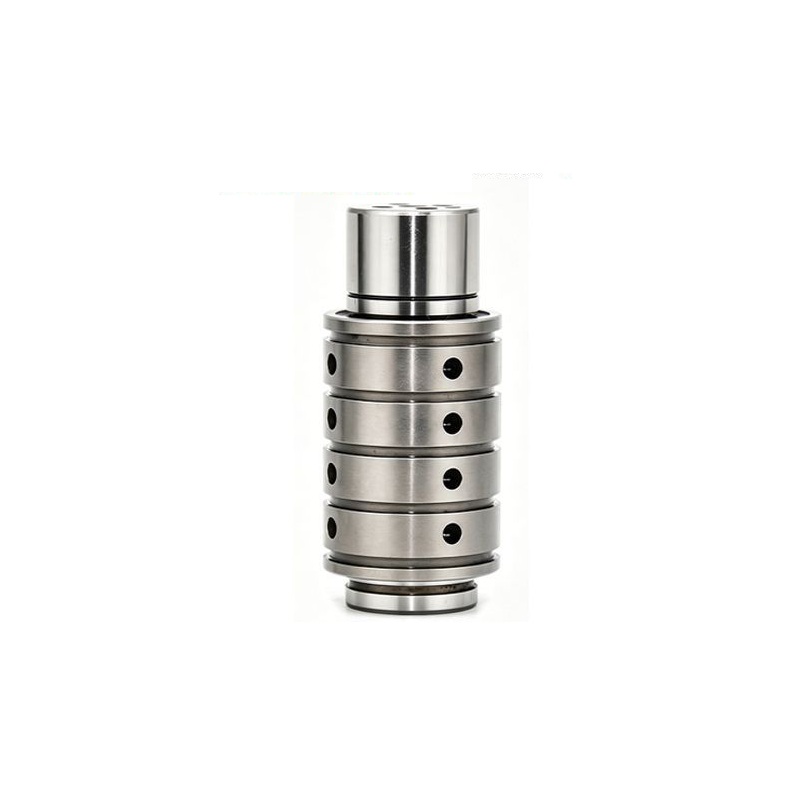

Custom Precision Hydraulic Valve Assembly

30 Years of Physical Factory Precision & Core Component Domestic Substitution

• Sub-Micron Precision Capabilities: We focus entirely on the microscopic space behind the decimal point, pushing manufacturing boundaries to achieve a strict dimension tolerance of up to ±0.00025mm.
• Flawless Geometric Performance: Our advanced cylindrical grinding and honing processes deliver a roundness of 0.0002mm, preventing fluid bypass and ensuring fluidic seal stability under high-pressure conditions.
• Ultra-Low Sliding Friction: Achieves a mirror-like surface roughness of Ra0.02μm, drastically decreasing internal mechanical friction, lowering wear rates, and eliminating micro-sticking defects in proportional valve systems.

Custom制 / Drawing & Sample-Based OEM Expertise

• Tailored exactly to your Blueprints: We offer comprehensive OEM/ODM manufacturing flexibility, delivering high-precision valve assemblies, spools, and sleeves processed exactly to your provided 2D drawings, 3D CAD files, or physical reference samples.
• Certified Premium Material Availability: Available in multiple high-performance materials calibrated to your application’s hardness and chemical environment, including SUS440C stainless steel, SKD11 tool steel, SUJ2 bearing steel, and 40Cr alloy steel.
• Replacement for High-End Imports: Specially engineered to offer an economical, high-durability localized alternative for international brand hydraulic valve cores without sacrificing system responsiveness or longevity.

Key Technical Specifications

• Supported Valve Configurations: Multi-way directional valves, electro-hydraulic directional valves, hydraulic locks, bidirectional modular valves, and proportional pressure reducing spools.
• Standard Sample Size: 18*10*7*89 (Fully customizable size variations available upon request).
• Achievable Tolerances: Accuracy: ±0.00025mm | Roundness: 0.0002mm | Roughness: Ra0.02μm.

Primary Application Fields

• Heavy Construction Machinery: High-pressure multi-way directional control networks, excavator control spools, and stabilizing hydraulic lock valves.
• Industrial Automation Equipment: Proportional pressure reducing valves for automated assembly presses, injection molding machinery, and high-precision fluid power stations.
• Precision Metallurgy & Marine Tools: Electro-hydraulic directional control systems and modular stacking blocks requiring high wear-resistant capabilities under continuous operation.

We are committed to helping industrial buyers, fluid system engineers, and localized workshop managers grow by offering flexible purchasing options with absolutely no minimum order quantity (MOQ) pressures. Whether you require a single high-precision functional prototype batch to test a new system or a low-to-high volume custom production run to replace stock wear items, we deliver premium results with minimal stock burden. Contact our engineering team today to upload your drawings or send over your samples to get started.
