Ultra-Precise 0.004mm Mating Clearance & High-End Machining Pathways

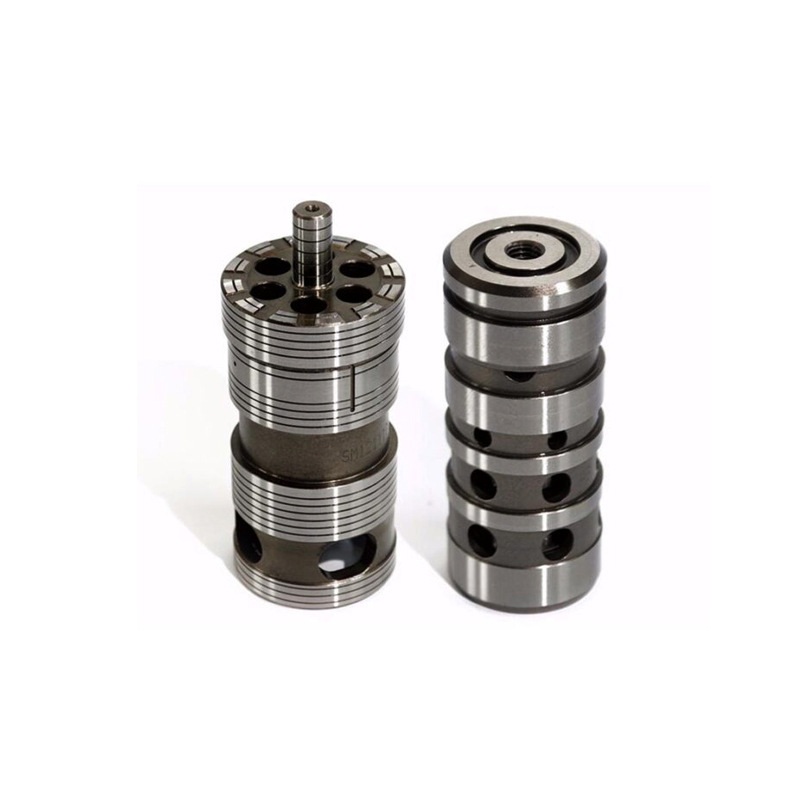

- Sub-Micron Mated Clearance: The valve core and sleeve are precision-ground as an interlocking matched set, achieving an ultra-tight clearance fit of 0.004mm to secure internal pressure fluid seals and eliminate oil bypass.
- Internal & External Cylindrical Grinding: Both the outer diameter of the spool core and the functional seating faces of the outer sleeve are micro-ground to ensure total concentricity, true roundness, and parallel alignment.
- Advanced Honing & Centerless Grinding: Internal sleeve bores undergo high-accuracy honing, while the piston rods are centerless-ground to establish a flawless mirror finish that eliminates frictional drag and micro-sticking.
Comprehensive Parameter Customization & Drawing-Based OEM Flexibility
- Fully Tailored to Your Blueprints: We offer complete OEM/ODM manufacturing flexibility, delivering high-precision valve cores and sleeves processed exactly to your provided 2D drawings (PDF/DXF) or 3D CAD files (STEP/IGS).
- Custom Dynamic Operating Metrics: We excel at adjusting key structural parameters directly to your fluid network requirements, allowing custom configurations for port connection diameters, nominal pressure tolerances, oil-box operational capacities, and rated flow capacities.
- Premium Hardened Metallurgy: Fabricated from industrial tool and bearing steels (such as SUJ2, SKD11, or SUS440C) and vacuum heat-treated to maximize surface hardness, preventing score marks from fine fluid contaminants.
Key Technical Specifications
- Supported Core Machining Forms: Internal and external cylindrical grinding, precision honing, centerless grinding, piston rod matching, and custom spool-groove geometries.
- Mating Performance Standard: Verified slide clearance held strictly at 0.004mm.
- Fully Customizable Parameters: Port Connection Diameter (来图定制), Nominal Pressure Thresholds (来图定制), Oil-Box Capacity Volume (来图定制), and Rated Flow Levels (来图定制).
Primary Application Fields
- Industrial Press & Machine Tools: High-precision proportional and servo-hydraulic systems for injection molding machines, automated stamping lines, and CNC metal bending units.
- Mobile & Construction Machinery: Ultra-reliable directional control blocks for compact crawler loaders, specialized crane lift cylinders, and heavy utility utility vehicles.
- High-Pressure Hydraulic Power Units: Specialized flow-divider setups, manifold cartridge valves, and custom directional spool manifolds requiring tight leakage restrictions.
We are committed to helping industrial buyers, fluid power workshop managers, and emerging machinery system designers grow by offering flexible purchasing options with absolutely no minimum order quantity (MOQ) pressures. Whether you require a single high-precision 0.004mm matched valve set prototype for engineering validation or a low-volume custom batch to swap out worn field hardware, we deliver premium results with minimal stock burden. Contact our engineering team today to upload your drawings and get started.
